CeX3D Inverse - 3D Models from Photographs Automatically
GALLERY OF THE EVOLUTION OF CEX3D INVERSE
Evolution of CeX3D Inverse on the Image Set: St. Alban Anglican Church at Langelinie, Copenhagen, Denmark
The three input images, used in all reconstructions on this page:
Reconstruction from 2014-03-10 with CeX3D Inverse Pro 0.7.2.0 alpha, Rendered Using (UV-mapped) Texture:
- Download model (OBJ and RIB formats; 56MB zipped): Reconstruction of Copenhagen St. Alban Church 2014-03-10
- There is both a simple model constructed from only the second view (8,908 trigons) as well as a full high-resolution model (803,252 trigons)
- Reconstruction times on a 32-bit 3Ghz Intel Core 2 Duo computer running Linux:
- CeX3D Inverse Pro 0.7.2.0 alpha: 3 hours 2 minutes and 34.0 seconds
- CeX3D Inverse NCU 0.7.2.0 alpha: 4 hours 38 minutes and 47.8 seconds
- The model is noisy (this will be improved) and contains small cracks (needs more testing).
The roof of the entrance building necessarily has to be striped or missing, since it is not visible in any of the images
- Texture is projected all the way through the model, so be sure to look at it from the front side
-
Reconstruction from 2013-01-30 with CeX3D Inverse Pro 0.7.0.0 alpha, Rendered Using (UV-mapped) Texture:
- Download model (OBJ and RIB formats; 47MB zipped): Reconstruction of Copenhagen St. Alban Church 2013-01-30
- There is both a simple model constructed from only the second view as well as a full high-resolution model
- The model is noisy (this will be improved) and contains small cracks (needs more testing).
The roof of the entrance building necessarily has to be striped or missing, since it is not visible in any of the images
- Texture is projected all the way through the model, so be sure to look at it from the front side
-
Reconstruction with a pre-alpha Version from 2012-06-24, Rendered Using (UV-mapped) Texture:
- Download model (OBJ format; 55MB zipped): Reconstruction of Copenhagen St. Alban Church 2012-06-24
- The model is noisy (this will be improved) and contains small cracks (needs more testing)
- Texture is projected all the way through the model and there are wrongly reconstructed "blocks in the way", so be sure to look at it from the front side
-
Reconstruction with a pre-alpha Version from 2012-05-28, Rendered Using (UV-mapped) Texture:
- Download model (OBJ format; 20MB zipped): Reconstruction of Copenhagen St. Alban Church 2012-05-28
- The model contains holes (needs more testing) and is noisy (this will be improved)
- Texture is projected all the way through the model and there are wrongly reconstructed "blocks in the way", so be sure to look at it from the front side
-

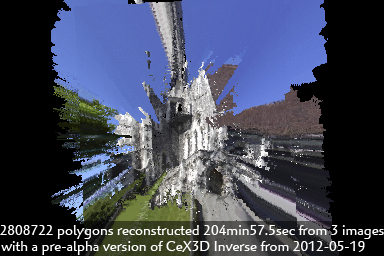

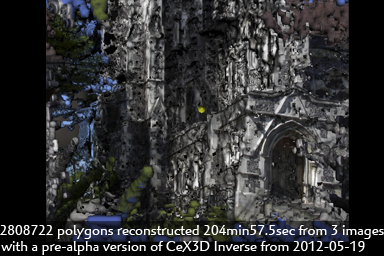

Reconstruction with a pre-alpha Version from 2012-05-19, Rendered Using (UV-mapped) Texture and Mesh Vertex Colours, Respectively:

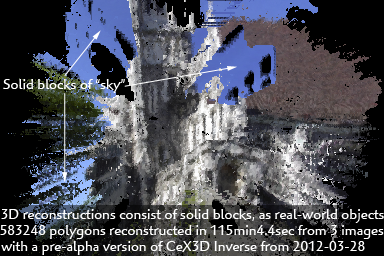

Reconstruction with a pre-alpha Version from 2012-03-28, Rendered Using Mesh Vertex Colours:

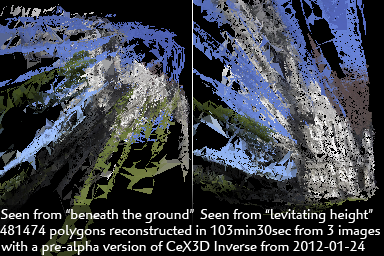

Reconstruction with a pre-alpha Version from 2012-01-24, Rendered Using Mesh Vertex Colours:

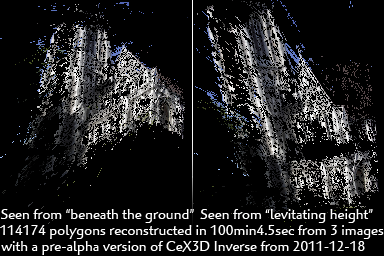

Reconstruction with a pre-alpha Version from 2011-12-18, Rendered Using Mesh Vertex Colours:
